DALI OBERON ON-WALL C
EASY TO POSITION
The driver materials, crossover design and geometry applied in the OBERON C series has been selected to achieve a wide dispersion pattern. This ensures a well-integrated sound, even when listening at a significant off-axis angle. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion. This is why all DALI speakers are not designed to be toed-in.
The SOUND HUB COMPACT transmits to OBERON C speakers using a proprietary 30 bit wireless protocol derived from the acclaimed DALI SOUND HUB. Audio transmission latency from input to speaker is typically less than 15 mS, and inter-speaker timing is accurate to the single sample period of the broadcast audio data.
The iron pole piece of the OBERON C woofer magnet is crowned by the DALI patented SMC disk – minimizing the negative effects of the iron. The use of the SMC disk greatly reduces mechanical distortion, which lowers third order distortion. This allows for a longer listening pleasure, a relaxed midrange and a surprising amount of detail for its price class.
The OBERON C power amplification comprises two 50 Watt peak, closed-loop Class-D power amplifiers chosen specifically for their sound quality and dynamic ability. One amplifier powers the high frequency driver, one powers the bass/mid driver (or twin drivers in the case of the OBERON 7 C).

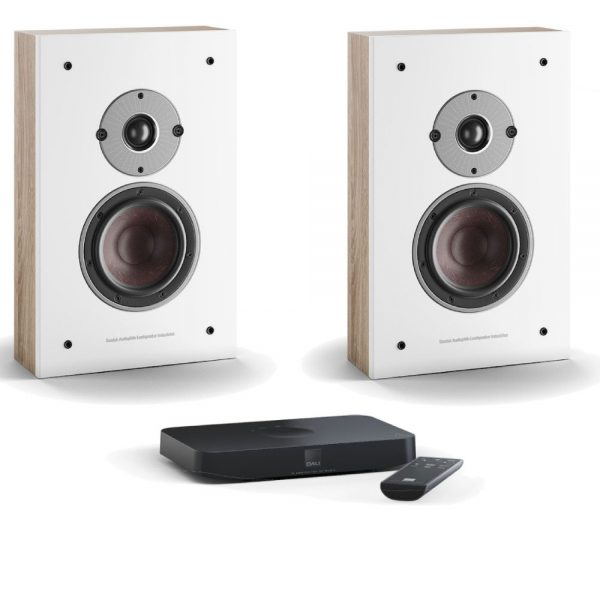

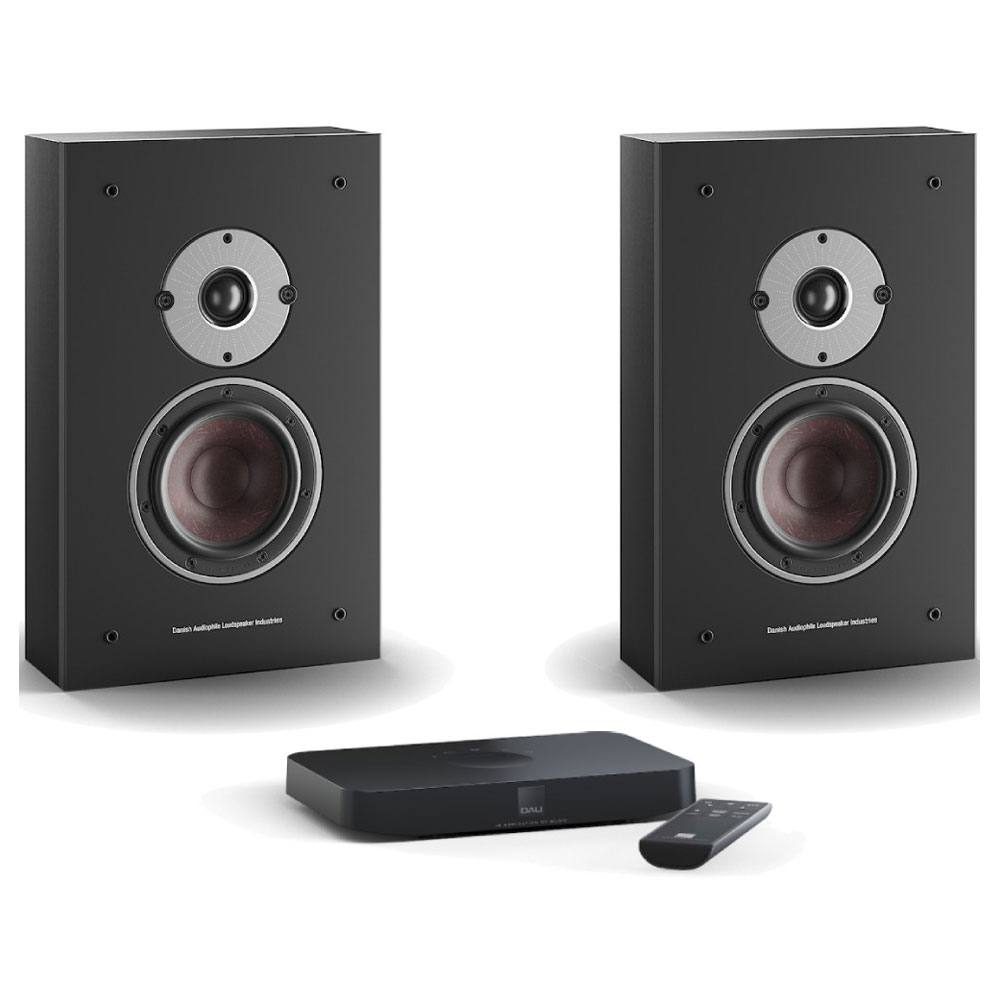

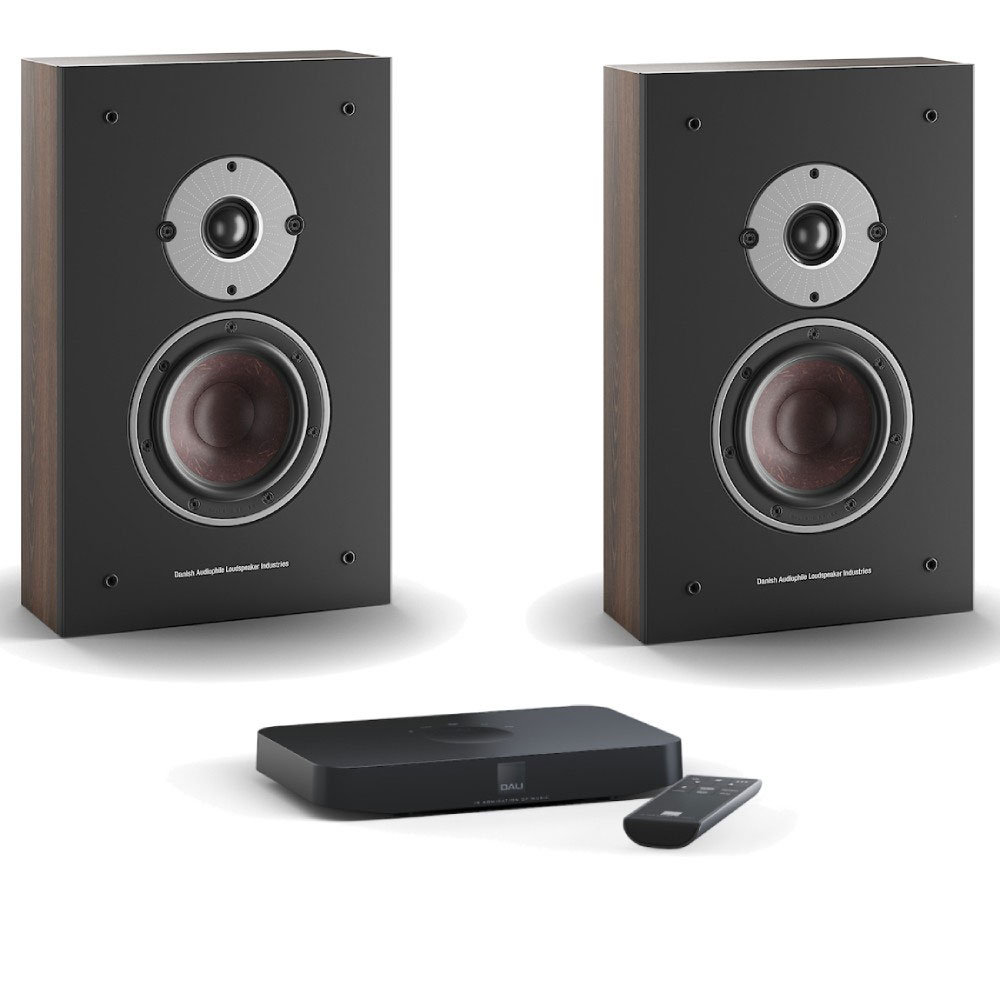

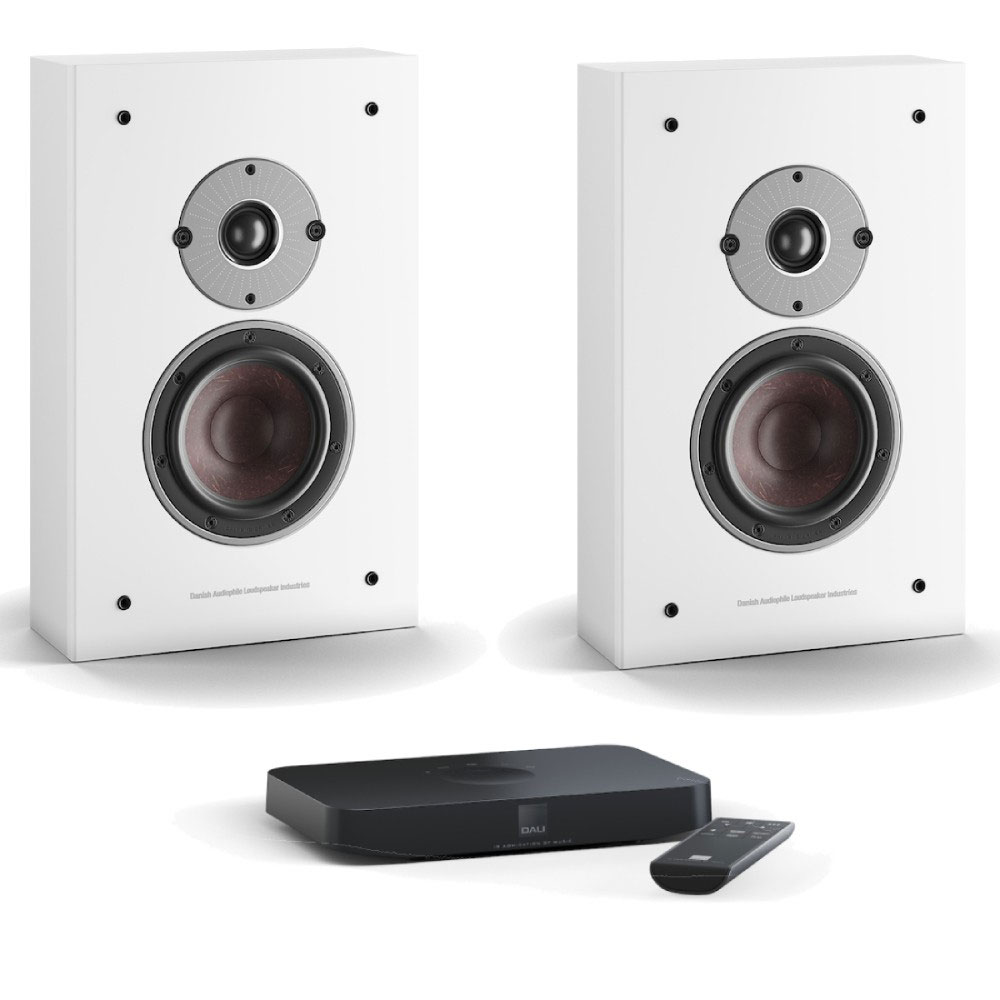

The OBERON ON-WALL C was designed with TV audio very much in mind and despite its compact dimensions, the combination of DALI technologies employed endow it with performance comparable to significantly larger speakers. The OBERON ON-WALL C is designed specifically for direct wall mounting via rear panel keyhole slots. Portrait and landscape orientations are both accommodated.The slim and discreet OBERON ON-WALL C comprises a compact, low profile, rear reflex loaded cabinet fitted with a 5.25” DALI wood fibre cone driver featuring SMC, and a DALI ultra lightweight 29mm soft dome tweeter.
The compactness of the OBERON ON-WALL C makes it easy to integrate into any room. To achieve a wide dispersion pattern in the listening area, the driver materials and geometry applied in the OBERON ON-WALL C have been carefully selected. The same principles have been applied in the design of the crossover.
As result, you will experience a well-integrated sound, even when listening at a significant off-axis angle. This is important as you are rarely seated directly in front of your loudspeakers when listening to music. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI speakers are not designed to be toed-in.
SOUND HUB COMPACT
Offering HDMI ARC, the SOUND HUB COMPACT is designed for TV audio – switching on and off in sync with the TV. Additionally it enables the use of the TV remote control to adjust volume and mute functions.
Inputs & connections
With five discrete audio inputs available, the SOUND HUB COMPACT can connect to almost any audio device – digital or analogue. It features no less than four ways to connect a TV. Including ample possibilities to connect music streaming or conventional audio devices.
The SOUND HUB COMPACT and OBERON C wireless connection is highly stable and introduces next to no packet loss. The robust nature of the wireless connection means that the Sound Hub Compact can be located as much as 10 m apart from the speakers without risk of connection failure or signal interruptions.
The SOUND HUB COMPACT Bluetooth input features AAC and aptX HD high performance codecs and enables smartphones, tablets, laptop or desktop computers, or any other Bluetooth audio source easily and quickly to play either locally stored or streamed music. Even Bluetooth equipped TVs.
Designed specifically with seamless TV integration and Bluetooth audio in mind, the SOUND HUB COMPACT wireless audio preamplifier combines all the functions and interface facilities needed to play the central role in a complete wireless active Hi-Fi system. It can handle a variety of wired digital and analogue sources, including HDMI ARC, and also pair with Bluetooth audio devices such as smartphones, tablets, laptop and desktop computers to enable entirely wireless audio playback. The SOUND HUB COMPACT can be installed on a table, shelf or furniture unit or be direct wall-mounted using its keyhole slot features.The system will even automatically switch on when a previously paired Bluetooth device is connected and playback initiated. There’s no complex control app to learn, just automatic input switching and intuitive source based volume control.
The SOUND HUB COMPACT transmits to either OBERON C, CALLISTO C or RUBICON C speakers using a proprietary 30 bit wireless protocol derived from the acclaimed DALI SOUND HUB.
Thanks partly to utilising a relatively un-congested radio band, and partly to the use of a protocol specifically designed for audio data, the SOUND HUB COMPACT and OBERON C wireless connection is highly stable and introduces next to no packet loss. Feed-forward error correction is employed however to eliminate the results of packet loss should it occur. The sub 15 mS input to speaker latency of the system means also that the SOUND HUB COMPACT and OBERON C system can be used in audiovisual systems with no resulting loss of lip-sync.
The SOUND HUB COMPACT wireless connection protocol is a proprietary 30 bit digital stream broadcast over the 5.2 GHz or the 5.8 GHz band. The optimal band option is selected automatically depending on the local radio signal environment. The 30 bit protocol transmits uncompressed I2S audio at 24 bit/96 kHz resolution and utilises the remaining six bits for feed-forward error correction, volume control, speaker identification and for other miscellaneous functional requirements.
The robust nature of the SOUND HUB COMPACT and OBERON C wireless connection means they can be located as much as 10 m apart without risk of connection failure or temporary signal interruptions.
