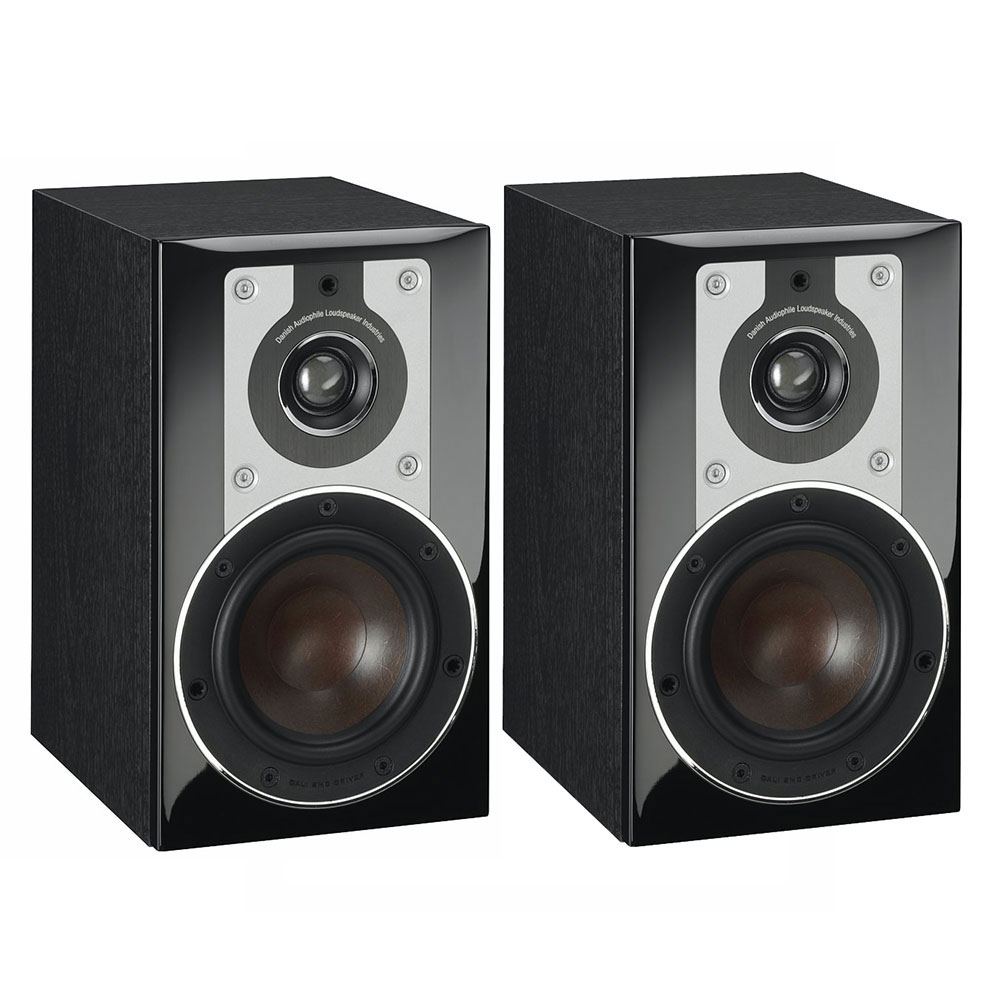

Dali Opticon 1 – Bookshelf Speaker (Pair)

Ask A Question

FREE SHIPPING Free shipping on all orders
MONEY BACK GUARANTEE 100% money back guarantee.
NO COST EMI 0% Interest Free Payment
ONLINE SUPPORT/ QUESTION Chat Now!
Payment Protection 100% secure and safe payment
Fast Delivery Fast & Reliable Delivery by Fedex
Category: Brands: ,

Description

DALI OPTICON 1

HAND-ASSEMBLED

The mounting of the drivers and the final tests and approvals on each and every speaker is also handled directly at our own assembly lines in our Danish factory.

DALI DRIVERS

All elements of the DALI drivers are designed, produced and manufactured in-house in DALI.

DALI MDF CABINETS

Keeping the manufacturing of the OPTICON series firmly in the hands of DALI we utilize our large and efficient woodworking facility in Denmark to handle everything from cutting out the Medium Density Fibre board (MDF) cabinet to applying the vinyl.

SMC-TECHNOLOGY

In the OPTICON woofer magnet motor system the pole piece is purely constructed of SMC. SMC’s unique ability to deliver a high magnetic conductivity and a very low electrical conductivity delivers all the wanted qualities of a really good speaker magnet without the traditional downsides.

PRODUCT DETAILS

Dali Opticon 1 Bookshelf Speaker
The Best Bookshelf Speaker Dali Opticon 1

The DALI OPTICON 1 is a compact stand mount loudspeaker, designed to be placed close to the wall or mounted on it. It combines its almost 5 litres of air capacity with a rear-mounted bass port, a 4 ¾ inch low-loss Wood Fibre Woofer, a 26 mm ultra-light Soft Dome Tweeter and gold-plated terminals and what the DALI OPTICON 1 delivers is the perfect balance of clear, detailed midrange and an impressive tight bass that belies its size.

Legacy

The OPTICON 1 features the same low-loss Wood Fibre Woofer found in our flagship EPICON series, alongside our unique SMC (Soft Magnetic Compound) magnet motor system and a brand new Soft Dome Tweeter developed for the OPTICON series, all of which works together along with a individual bass reflex port for the woofer to produce audio exactly as the recording artist originally envisioned it.

Key Features

  • Proprietary DALI tweeters and woofers
  • Hand-assembled with in-house built cabinet construction
  • Unique SMC-based magnet motor system
  • Low-loss Wood Fibre Woofers
  • Ultra-light 26 mm Soft Dome Tweeter
  • Gold-plated Terminals
  • Available in White Matt Satin, Black and Walnut

BASSPORT

The OPTICON 1 relies on the bass reflex principle. The bass reflex port has been tuned to minimize distortion from the woofers, and to control the time response of the roll-off from the bass system.

Dali Opticon 1 Bookshelf Speaker
Dali Opticon 1 Bookshelf Speaker Bassport

Timing is the absolute keyword when tuning bass ports. Correct timing without any unwanted interaction between the drivers and frequencies creates a holographic soundstage. Research clearly shows that speakers with superior time coherence deliver enhanced sonic realism.

SMC

Soft Magnetic Compound (SMC) is a coated magnet granule that can be shaped into any form that you would want. SMC has many advantages, and used in a speakers magnet motor system it result in a significant reduction of distortion from mechanical loss.

SMC’s unique ability to deliver a high magnetic conductivity and a very low electrical conductivity delivers all the wanted qualities of a really good speaker magnet without the traditional downsides. The result is a significant lowering of the colouration of the reproduced sound.

In the OPTICON 1 woofer magnet motor system the pole piece is purely constructed of SMC. This important addition to the ferrite based motor system is paramount to the audio performance of the OPTICON series.

SOFT DOME

The OPTICON 1 holds a brand new Soft Dome Tweeter developed for the OPTICON series, which features low resonance frequency, high power handling, and exceptional headroom for high sound pressure levels and extreme excursions. It is rolled in carefully around 2.0 – 2.5 kHz, depending on the model. And the dome is allowed to operate up to its high frequency limit well beyond 20 kHz without being rolled off in the crossover.

Incorporating an ultra-thin magnetic fluid for cooling, the fluid has a very high flux saturation point for greater power handling. This also means superb control of coil movement – even at very high sound pressure levels.

The dome material itself is very lightweight, and actually so thin that a coating has to be applied to hold the material together and uniform.

WOOFER

The woofer for the OPTICON 1 is designed with a strong focus on DALI sound principles of low-loss, low distortion and low colouration of the reproduced sound. The ideal speaker plays just what the amplifier intented, with nothing added and nothing subtracted.

To meet these ideals every part in the OPTICON woofer is carefully chosen for its low-loss abilities. The cone is made from a pulp mix of paper and wood fibre that ensures very low surface resonance and gives the cones their distinctive colour. The cone terminates in a rubber surround that is chosen for its soft and very flexible properties. This gives the cone free movement with very low dampening effect, and leaves control of the cone movement to the WOOFER magnet motor. The rubber surround is attached to an aluminium chassis that, due to the properties of aluminium, offers almost no interference to the magnetic field surrounding the magnet motor.

The magnet motor itself consists of a large ferrite magnet that surrounds a pole piece made entirely of the unique material SMC. The pole piece and the ferrite magnet are secured between two soft iron plates. This forms a close to optimum environment for the 2 layer voice coil to work within. The voice coil is therefore able to transform the signals from the amplifier in to an undistorted, uncoloured and very well timed reproduction of the original signal, leaving the listener with a close to live experience.

CABINET

Keeping the manufacturing of the OPTICON series firmly in the hands of DALI we utilize our large and efficient woodworking facility in Denmark to handle everything from cutting out the Medium Density Fibre board (MDF) cabinet to applying the vinyl. The mounting of the drivers and the final tests and approvals on each and every speaker is also handled directly at our own assembly lines in our Danish factory.

The OPTICON 1’s front baffle form a rigid base for the drivers, which are screw-mounted directly into the 25 mm thick MDF. To ensure the best possible hold on the woofer and thereby integration with the cabinet, the 5 screw holes are placed along the arms of the woofer chassis. The tweeter module is held securely in place with 6 screws to eliminate vibrations and resonance. A rubber gasket is placed between the woofer and the milled out rim to ensure a 100% airtight fixture.

The baffle sports a black or white high-gloss finish, for a more exclusive look and feel. The slim-line design of the front baffle contributes to the stereo perspective. And the ‘clean’ surface is not only pleasing to the eye; it reduces diffractions to an absolute minimum.

  • Indian's Largest Range of Quality, Unique, & Stylish Products
  • 100% Indian Owned & Operated
  • Personalised Service
  • The price is the total. No hidden costs, no surprises
  • Free shipping & delivery in India including regional areas



At AllHomeLiving.com, it is our endeavor to make your shopping experience is seamless and enjoyable. Therefore, we ensure simple and hassle-free shipping and payment options. Every product you order is delivered in perfect condition and that it reaches to you within the time stipulated by us. As a special privilege to our valued guests, AllHomeLiving.com offers Free Shipping on all orders (in case of Normal Delivery).

More Info.

Additional information

Product series

OPTICON

Frequency Range (+/-3 dB) [Hz]

62 – 26,500

Sensitivity (2,83 V/1 m) [dB]

86.0

Nominal Impedance [ohms]

4

Maximum SPL [dB]

105

Crossover Frequency [Hz]

2,000

Crossover Principle

2-way

High frequency driver, Quantity

1 x 26 mm

High frequency driver, Diaphragm type

Soft Textile Dome

Midrange driver, Quantity

1 x 4 3/4"

Midrange driver, Diaphragm type

Wood Fibre Cone

Enclosure type

Bass Reflex

Bass Reflex Tuning Frequency [Hz]

61.5

Connection Input

Single Wire

Dimensions With Base (HxWxD) [mm]

261 x 152 x 231

Accessories Included

Manual
Rubber Bumpers
Wall Bracket

Weight [kg]

4.5
